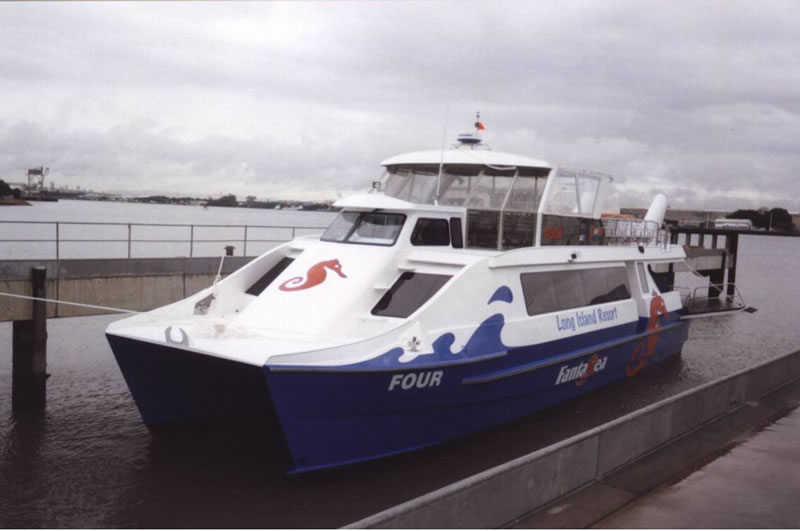

This 18.8 meter commuter ferry was built and designed for Fantasea Cruises and is currently operational in the Whitsundays in Queensland Australia. This aluminium passenger catamaran is licenced to carry 130 passengers in USL Code Class 1D. The vessel is powered by twin Deutz 430 hp Diesel engines and has a top speed of over 25 knots.

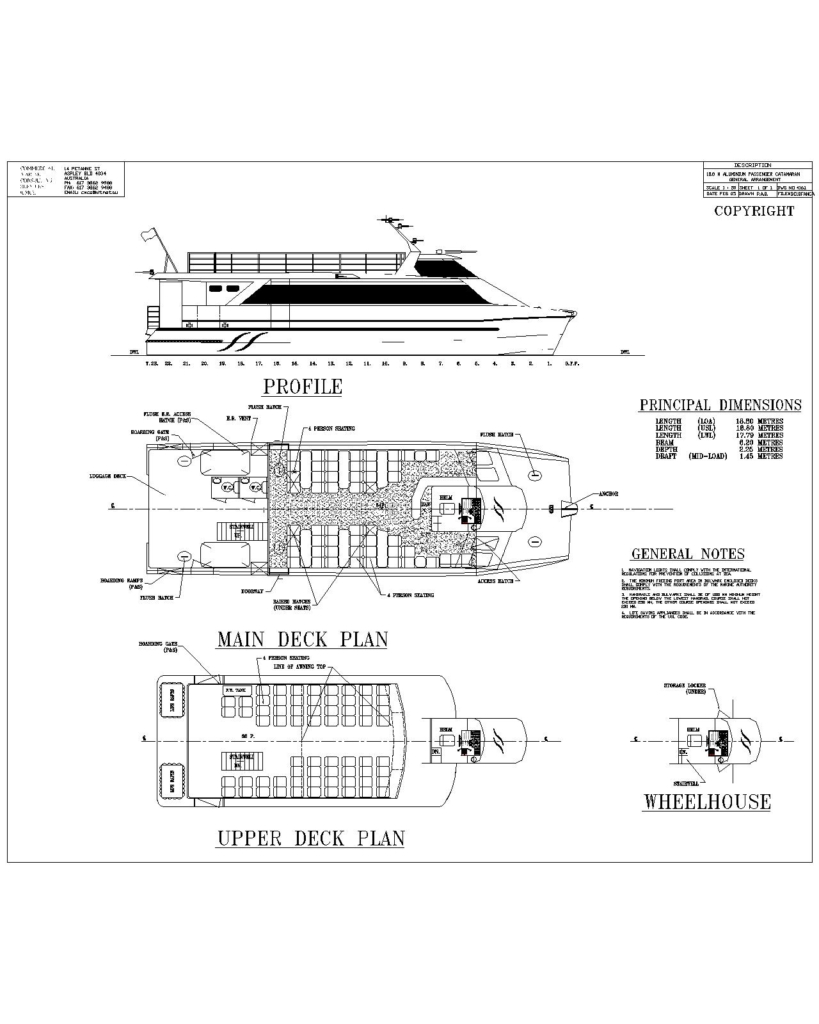

Details and Specifications of Fantasea (This design is available for construction)
Specifications
Length Overall | 18.8 m |
Beam | 6.2 m |
Draught | 1.4 m |
Fuel Tank | 2 x 1000 litres |
Water capacity | 1 x 500 litres |
Propulsion | 2 x 330 kw Deutz |
Passengers | 140 |
Operational speed | 22 kt |
Maximum Speed | 26 kt |
